IC694DSM314 Module | GE – PACSystems RX3i Motion Mate Controller

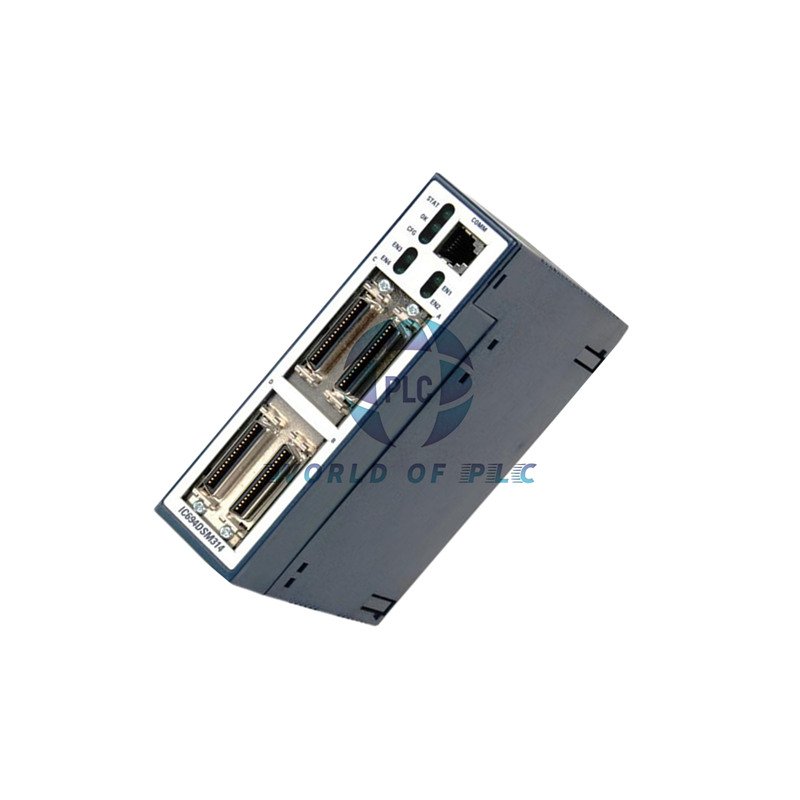

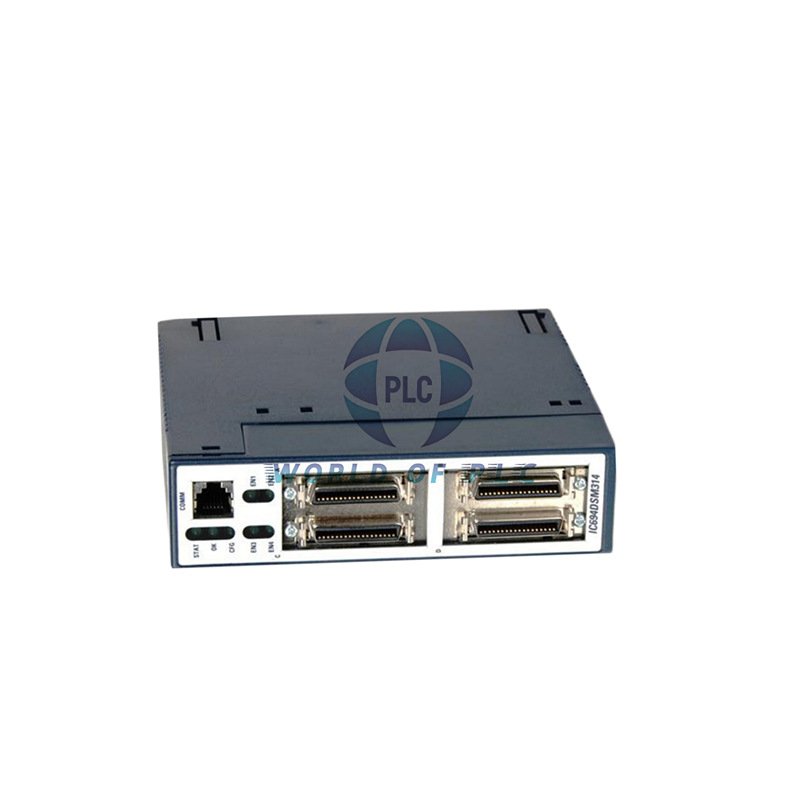

GE Fanuc IC694DSM314 Motion Mate Module for RX3i Systems

The IC694DSM314 from GE Fanuc delivers specialized motion control capabilities for PACSystems RX3i automation platforms. This optional accessory module provides advanced motion functionality for applications requiring precise positioning and synchronization. It extends system capabilities without requiring complete controller replacement.

Technical Specifications & Performance Data

• Brand: GE Fanuc
• Model: IC694DSM314
• Module Type: Motion Mate Module
• Power Requirements: 5V DC, 800 mA (4W) standalone
• Extended Power: Additional 500 mA (2.5W) with external controller
• CPU Compatibility: All RX3i CPU modules
• Control Modes: Standard Mode and Follower Mode
• Electronic CAM: Supported for complex motion profiles
• Hot Swap Capability: Not supported – requires power shutdown
• Operating Temperature: 0°C to 60°C industrial range

Motion Control Capabilities & Modes

• The IC694DSM314 provides standard motion control mode for basic applications
• It enables follower mode operation for synchronized motion control
• This module supports electronic CAM functionality for complex profiles
• It handles precise positioning tasks with high accuracy requirements
• The module manages synchronized multi-axis movements in automation systems
• It provides advanced motion profiling for specialized applications

System Integration & Compatibility

• This motion module maintains compatibility with all RX3i CPUs
• It installs in RX3i serial expansion racks for system expansion
• The module operates in Series 90-30 expansion racks for legacy integration
• It functions within complete PLC system architectures with backplanes and I/O
• This specialized module serves as an optional system enhancement
• It provides motion-specific functionality for targeted applications

Installation & Safety Requirements

• This module does not support hot swapping under any circumstances
• Installation requires complete system power shutdown before handling
• Hot swapping can cause electrical arcing and system malfunctions
• Improper handling may result in equipment damage or personal injury
• In hazardous environments, arcing could cause potentially explosive situations
• Always follow proper lockout/tagout procedures during installation

Power Management & Electrical Characteristics

• The module operates with 800 mA current draw at 5V DC standalone
• It consumes 4 watts of power during normal operation
• With external controllers, it handles additional 500 mA load capacity
• Extended operation supports extra 2.5 watts power consumption
• The module requires stable 5V DC power supply from backplane
• Proper power budgeting is essential for reliable system operation

Application Specific Considerations

• This module serves as an optional accessory for specialized applications
• It is not an essential component for basic PLC operations
• The module addresses specific motion control requirements
• It enhances systems needing advanced positioning capabilities
• This solution provides cost-effective motion enhancement for existing systems
• It enables gradual system upgrades without complete replacement

Packaging & Shipping Information

• Your order includes one IC694DSM314 Motion Mate Module
• All shipments include comprehensive 12-month warranty coverage
• We provide worldwide shipping via FedEx, UPS, and DHL services
• Standard packaging includes safety documentation and installation guidelines

Comparison with Related RX3i Modules

• The IC694DSM314 provides basic motion control capabilities
• For advanced motion control, consider the IC695PMM335 module
• The IC695PMM355 offers 4-axis servo motion control functionality

Professional FAQ Section

• Can I install this module while the system is powered?
• No, you must completely power down the system before installation or removal to prevent damage.
• What control modes does this motion module support?
• It supports both Standard Mode and Follower Mode for different motion control applications.
• Does this module work with all RX3i CPU models?
• Yes, the IC694DSM314 maintains compatibility with every CPU in the RX3i product family.
• What power requirements does this module have?
• It requires 800mA at 5V DC standalone, plus additional 500mA when using external controllers.
• What expansion racks support this motion module?
• It works in both RX3i serial expansion racks and Series 90-30 expansion rack systems.
