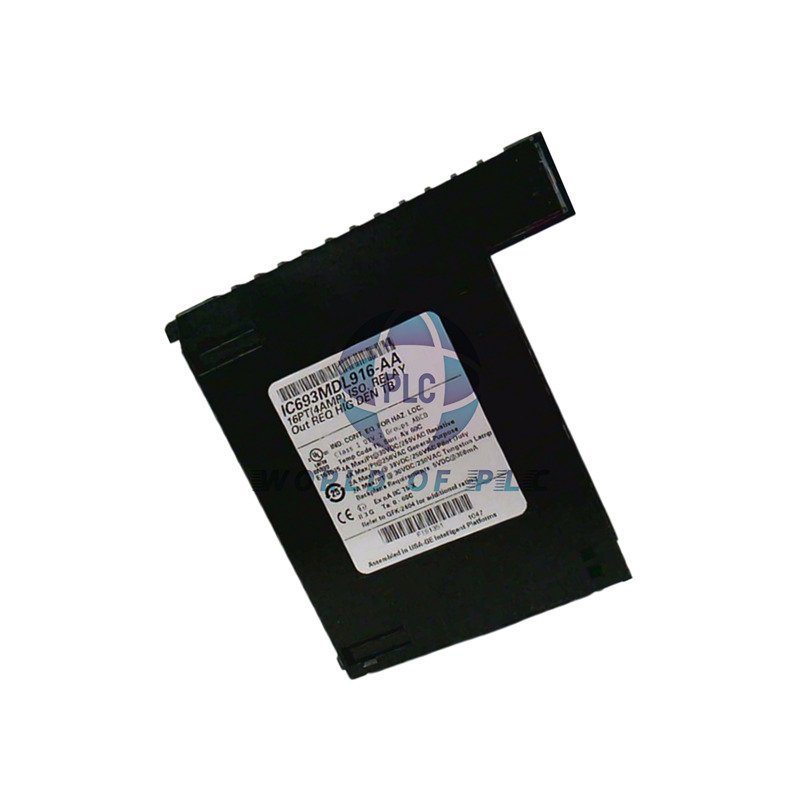

GE Fanuc IC693MDL916 16-Point Relay Output Module

Control diverse electrical loads with the versatile IC693MDL916, a 16-point relay output module for Series 90-30 PLC systems. This flexible module from GE Fanuc (now Emerson) handles both AC and DC voltages with individual channel isolation.

Technical Specifications

• Brand: GE Fanuc/Emerson
• Model: IC693MDL916
• Compatibility: Series 90-30 & PACSystems RX3i
• Output Points: 16 individually isolated relays
• Contact Type: Form A (Normally Open)
• Voltage Range: 5-125V DC / 5-250V AC
• Current Rating: 4A maximum per point
• Minimum Current: 10mA per point
• Switching Frequency: 20 cycles per minute
• Isolation: 250V AC continuous (field to backplane)
• Power Consumption: 300mA at 5V DC
• Module Width: Single slot

Package Contents

• One IC693MDL916 relay output module
• Installation and configuration guide

Shipping Services

• Worldwide delivery via FedEx, UPS, and DHL
• Complete tracking provided for all orders
• Express shipping options available

Frequently Asked Questions

• What load types can this module control? It handles both AC and DC loads including motors, solenoids, and contactors.
• Can I mix different voltage types? Yes, each channel is individually isolated for mixed AC/DC applications.
• What systems support this module? It works with Series 90-30 PLCs and PACSystems RX3i.
• How do I configure stop mode behavior? Use the DIP switches on the module to set output behavior during CPU stop.
