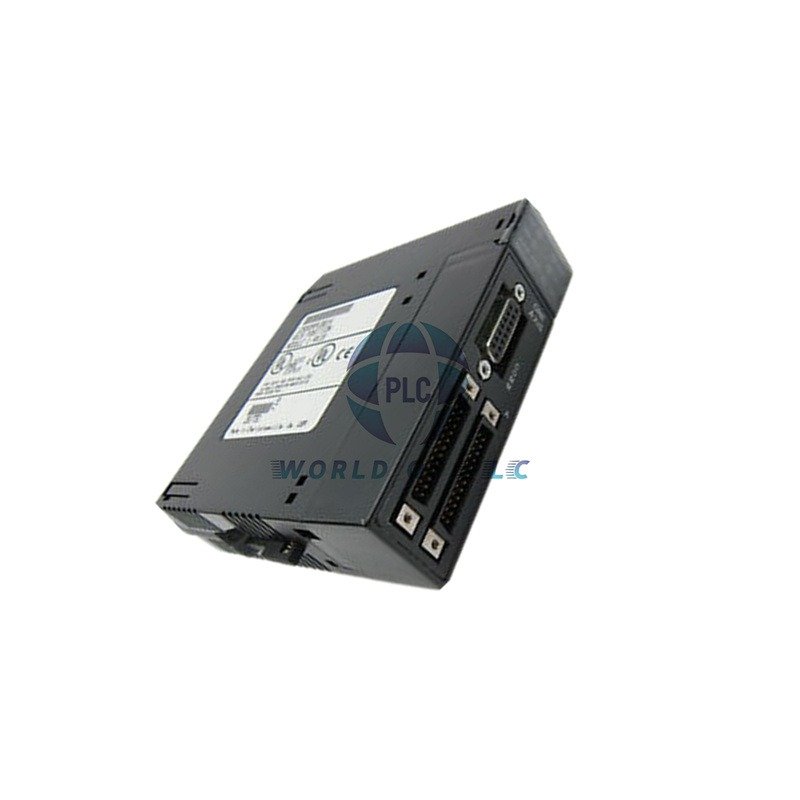

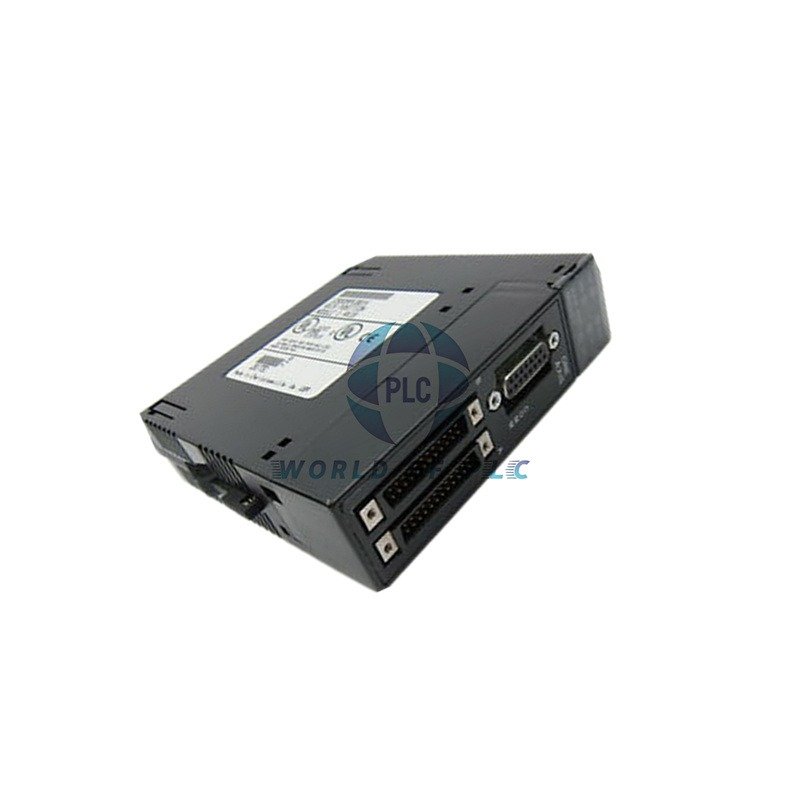

GE Fanuc IC693APU301 Single Axis Positioning Module
Add precise motion control to your Series 90-30 PLC. The IC693APU301 module delivers smooth servo motor control. Perfect for automation tasks requiring accurate positioning.
Technical Specifications
| Brand | GE Fanuc |
| Model | IC693APU301 |
| Series | Series 90-30 |
| Module Type | Axis Positioning Module |
| Number of Axes | 1 |
| Servo Update Rate | 1 millisecond |
| Connectors | 25-pin D-type, 24-pin high density |
| Operating Modes | Standard, Follower |
| Compatible CPUs | 311, 313, 323, 331 and higher |
| Max Modules/System | 3 (CPU 311/313/323), 8 (CPU 331+) |
| Max Modules/Baseplate | 3 |
| Communication Cables | IC693CBL311, IC693CBL319, IC693CBL317, IC693CBL320 |
| Programming Software | Motion Programmer, VersaPro 1.1+ |
Easy Installation
The IC693APU301 fits any Series 90-30 baseplate. It connects easily to servo drives using standard cables. Configuration is simple with dedicated software tools.
Package Includes
- IC693APU301 Axis Positioning Module
- Installation documentation
- Mounting hardware
Warranty & Shipping
We provide a 12-month warranty on this module. We ship worldwide via FedEx, UPS, and DHL for fast delivery.
Frequently Asked Questions
- Q: What is the difference between standard and follower mode?
A: Standard mode provides independent motion control. Follower mode enables electronic gearing for master-slave applications. - Q: What servo drives are compatible with this module?
A: It works with most common servo drives supporting analog ±10V command signals. - Q: How many motion programs can I store?
A: The module supports up to 10 motion programs stored in memory. - Q: What feedback devices are supported?
A: It supports encoder feedback with standard A/B/Z signals. - Q: Can I use multiple modules in one system?
A: Yes, up to 3 modules with smaller CPUs and up to 8 with larger CPUs.
