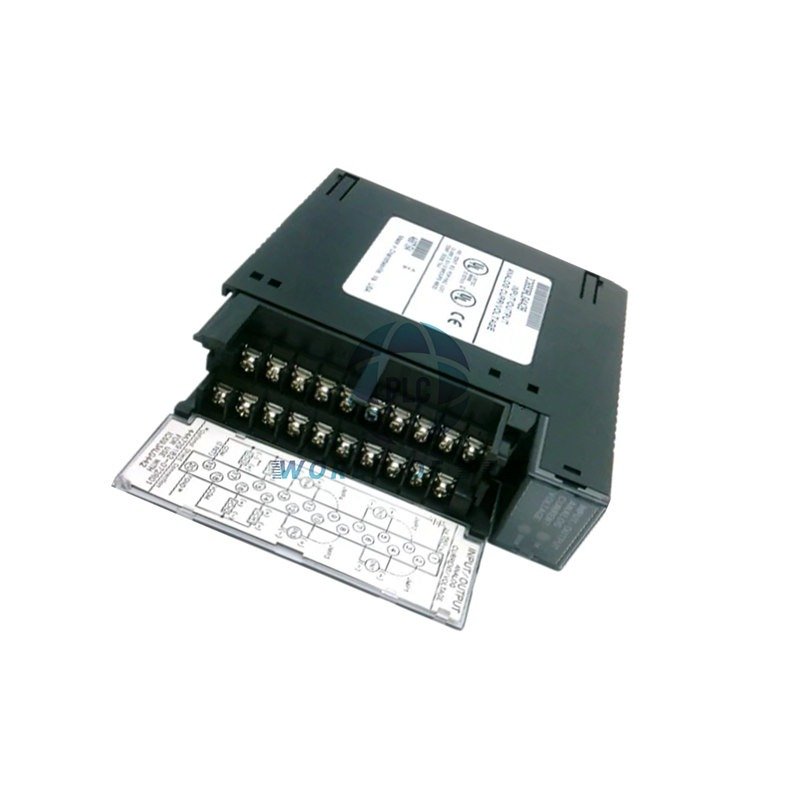

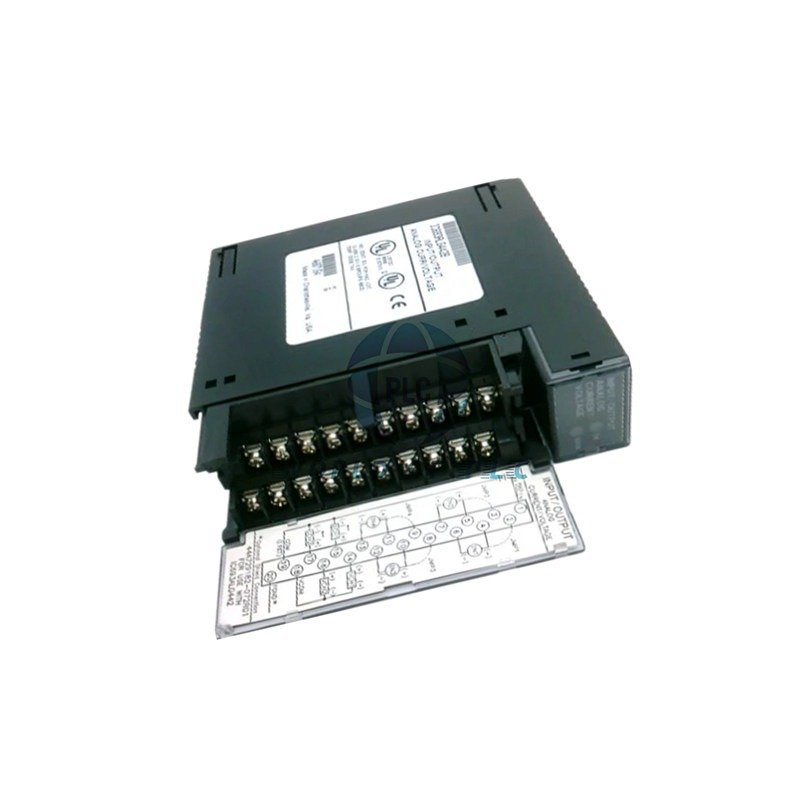

GE Fanuc IC693ALG442 Analog Combination Module
Meet your analog needs in one powerful module. The IC693ALG442 combines inputs and outputs for complete control. Perfect for complex automation tasks requiring both signal reading and device control.
Key Advantages
- 4 inputs + 2 outputs in one compact module
- Handles both voltage and current signals
- High precision with 16-bit resolution
- Fast update rate for real-time control
- Simplifies system design and saves rack space
Technical Specifications
| Brand | GE Fanuc |
| Model | IC693ALG442 |
| Series | Series 90-30 |
| Module Type | Analog Combination I/O |
| Input Channels | 4 Differential |
| Input Types | 0-10V, ±10V, 0-20mA, 4-20mA |
| Input Resolution | 2.5mV (0-10V), 5mV (±10V) |
| Output Channels | 2 Single-ended |
| Output Types | 0-10V, ±10V, 0-20mA, 4-20mA |
| Output Resolution | 0.5µA (4-20mA), 0.625µA (0-20mA) |
| Accuracy | ±0.25% @ 25°C |
| Update Rate | 8ms (inputs), 4ms (outputs) |
| Input Impedance | 800 KΩ |
| Power Consumption | 95mA @ 5VDC, 129mA @ 24VDC |
| Isolation | 1500V RMS |
Easy Installation
The IC693ALG442 installs in any Series 90-30 rack. It features a 20-terminal connector for easy wiring. The module is pre-configured for immediate use upon installation.
Package Contents
- IC693ALG442 Combination Module
- Removable terminal block
- Installation guide
- Mounting hardware
Warranty & Shipping
This product includes a 12-month warranty. We ship globally via FedEx, UPS, and DHL for reliable delivery.
