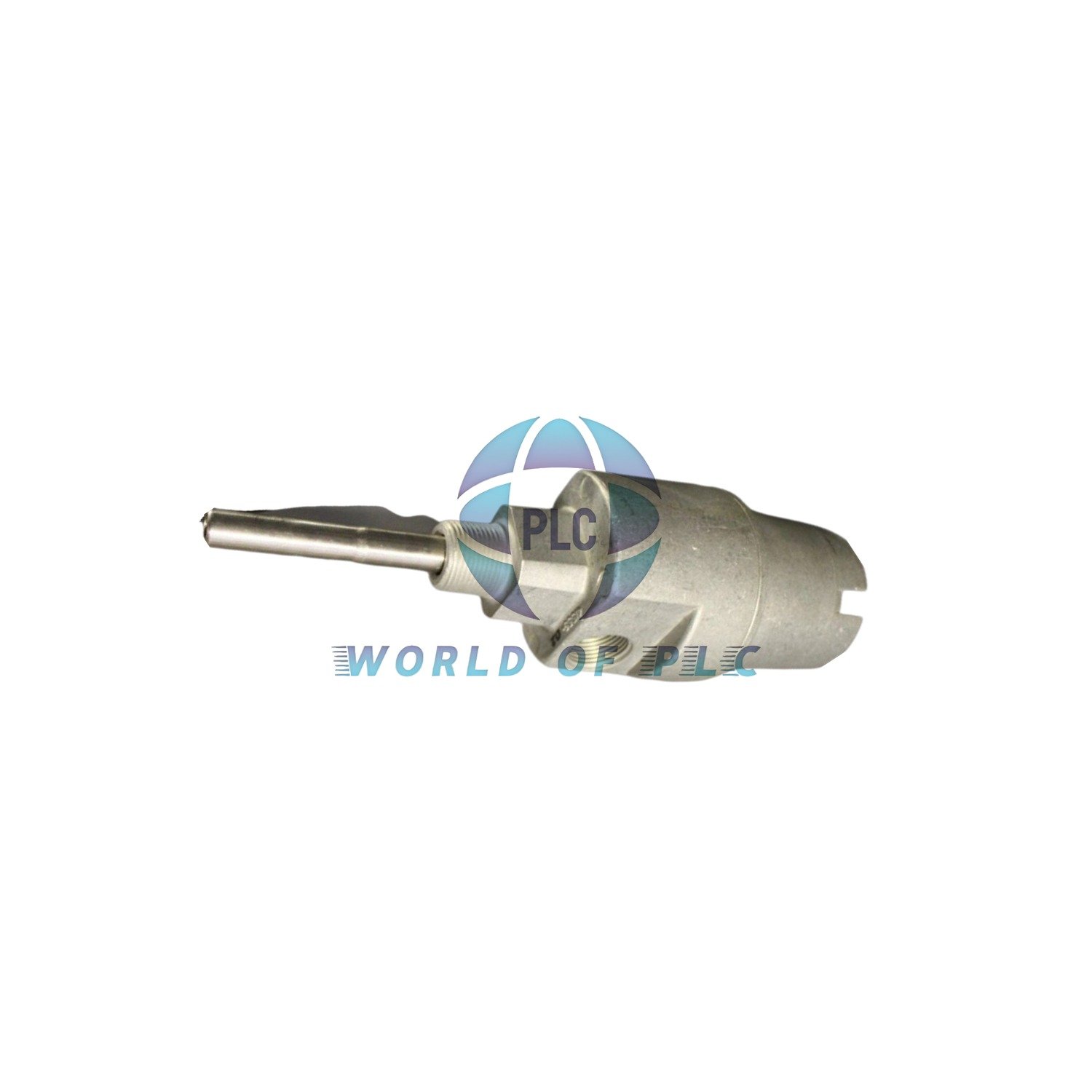

Bently Nevada – Proximity Probe Housing Assembly 21000-28-00-00-050-04-02

What You Get

Bently Nevada 21000-28-00-00-050-04-02 – New proximity probe housing assembly. 1-year warranty. Works in explosive areas. Aluminum body + stainless steel parts.

Product Codes Explained for 21000-28-00-00-050-04-02

• 28: 8mm probe with explosion-safe connector
• 00: No extra cable needed
• 00: No standoff adapter included
• 050: 5-inch (127mm) probe depth
• 04: Includes 1× 3/4-14 NPT plug
• 02: Standard 3/4-14 NPT screw size

Key Features

• Weight: 2.4 lb (1.1 kg)
• Works from -50°C to +80°C
• Fits cables up to 3/8 inch thick
• Max probe depth: 13.5 inches (34.3 cm)

Safety & Approval

• CSA Type 4 explosion-proof certified
• Meets API 670 safety rules
• RoHS compliant electronics
• For North American hazardous areas

In the Box

• Main housing unit
• Dome cover
• Thread seals & O-rings
• 3/4-14 NPT plug

Important Notes

• For probes deeper than 12 inches: Add extra support
• Installation torque: 18-22 Nm
• Works with 24701 stainless steel version
