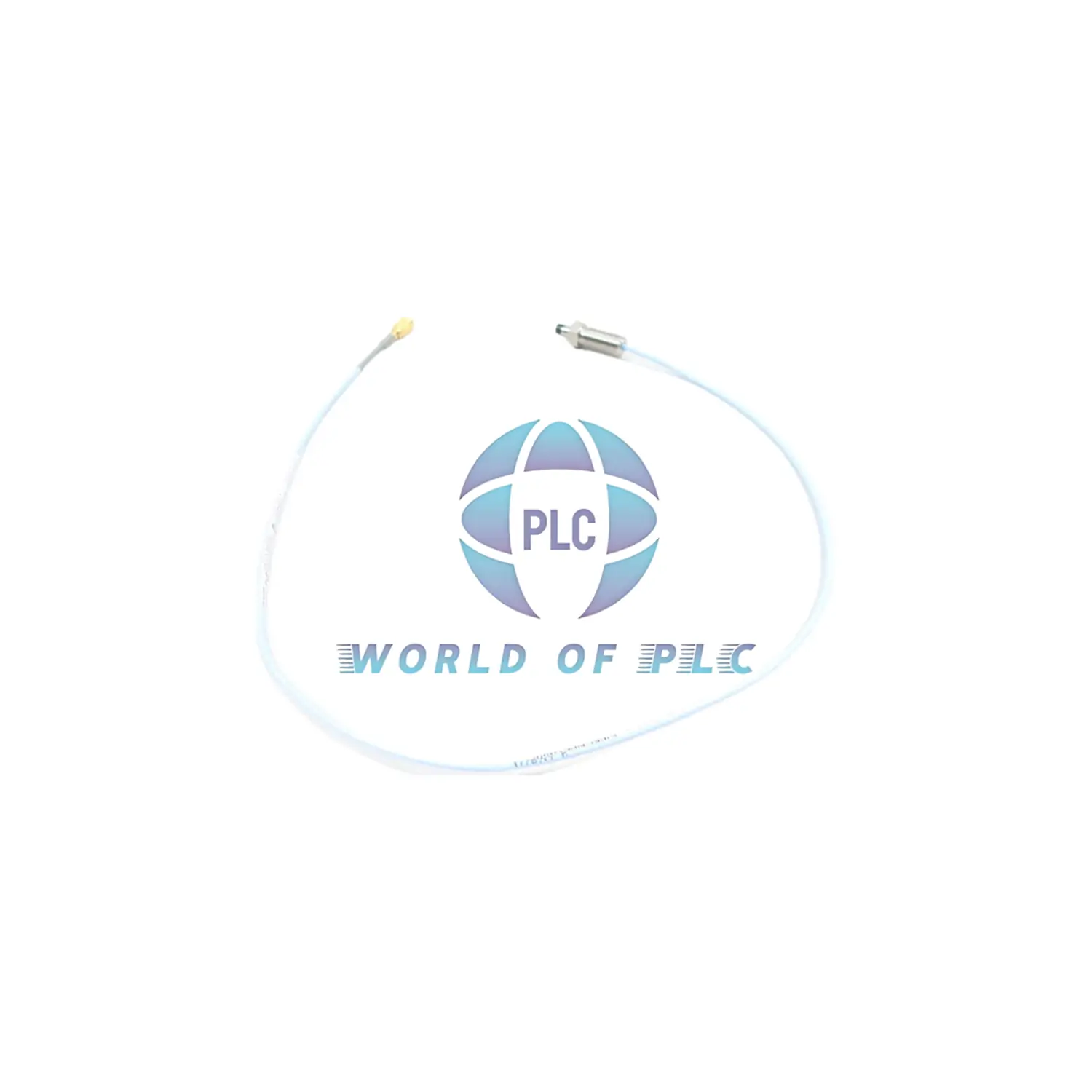

3300 NSv Reverse Mount Probe (0.5M Model)
Bently Nevada | PN: 330907-05-30-05-12-00 | 1-Year Warranty
Compact probe with 4.0Ω resistance for tight spaces. Works at -52°C to +177°C. No agency certs needed (00). Free COO available.
Key Features
- Thread: M10X1 Reverse Mount
- Cable: 0.5M (20″) FluidLoc
- Connector: Gold ClickLoc Coaxial
- Weight: 14-150g (0.5-5.3oz)
Technical Specs
| Measure Range | 0.25-1.75mm | Max Torque | 7.5 N•m |
| Field Wiring | 16-24 AWG | Thread Fit | 15mm |
| Seal Type | Viton O-Ring | Response Graphs | Fig16-17 |
Durability Warnings
- ⚠️ Don’t use below -34°C for >24hrs
- ⚠️ Use shielded triad cable under 305m
- ⚠️ Gap setting must be 1.0mm ±10%
Order Code Breakdown
330907-05-30-05-12-00 =
M10X1 Threads (05-30) | 0.5M Length (05) | ClickLoc (12) | No Certs (00)
