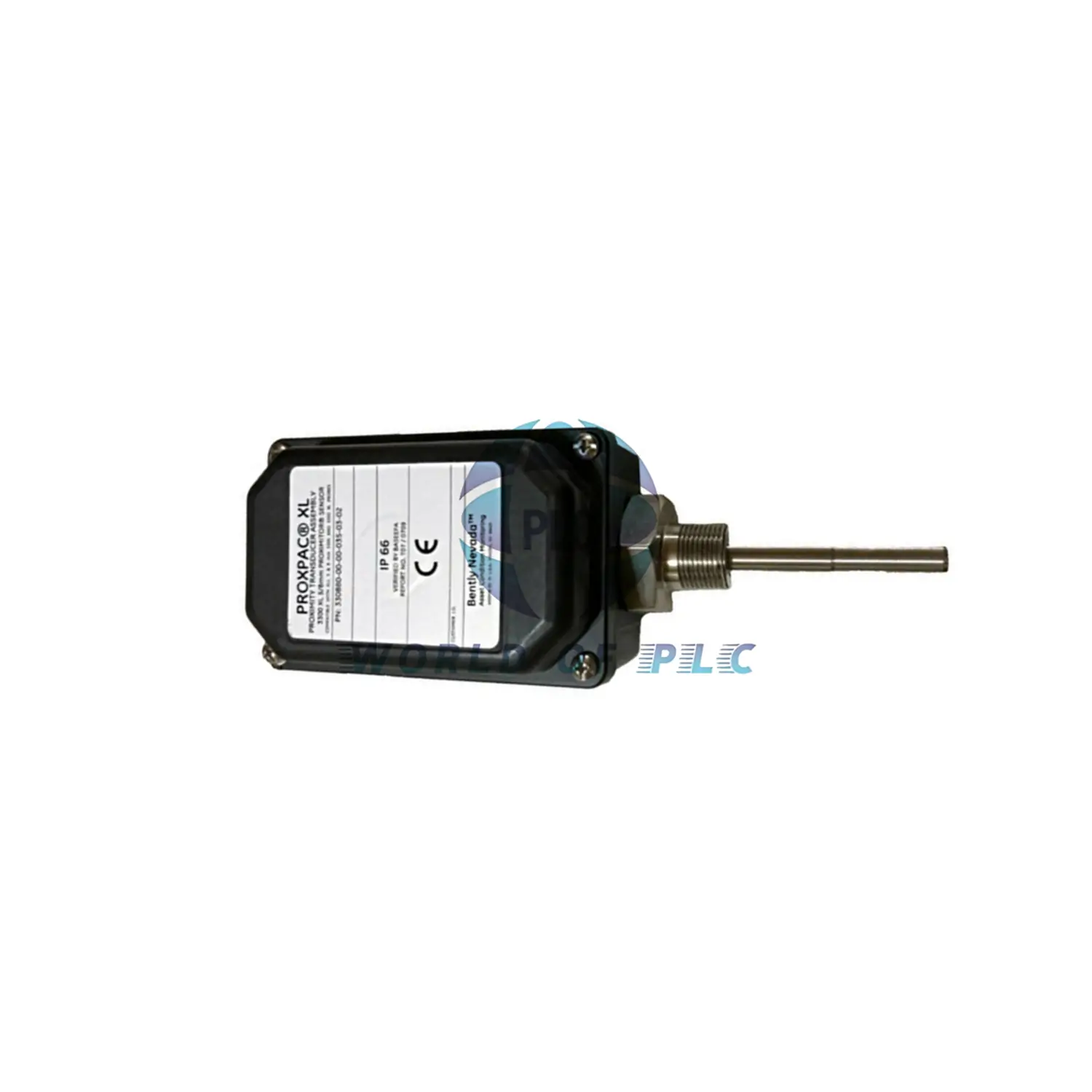

Bently Nevada – 330881-28-10-142-03-02 – PROXPAC XL Proximity Transducer

PROXPAC XL Proximity Transducer  Overview

Manufacturer: Bently Nevada | U.S.A Built | 1-Year Warranty 330881-28-10-142-03-02
Certification: BASEEFA T07/0709 & CSA Certified | COO: Add-on Available

🛠️ Customized Configuration

Probe: 8mm 3300 XL (2 8 Multi-Approval)
Standoff Adapter: 100mm (B=10) | Penetration: 142mm
Fittings: M20 + 2 Plugs (0 3 Option) | Thread: 3/4-14 NPT

🔋 Power & Precision

Voltage: -26Vdc to -17.5Vdc | Current: 12mA Max
Accuracy: ±0.025mm DSL | Scale Factor: 7.87V/mm ±5%
Response: 0-10kHz (±3dB) | Cable: 1m FEP Triaxial (75Ω)

🏗️ Heavy-Duty Build

Housing: IP66 PPS Composite | Load Test: 912N @ 38mm Lever
Impact Rating: 7J Ambient | 4J @ -39°C/+115°C
Torque: 29.5N·m (Retaining) | 39.3N·m (Locknut)

🌍 Extreme Conditions

Operational Range: -51°C to +177°C | Seal Risk: Below -34°C
Target: ≥15.2mm Flat | Shaft: ≥50.8mm Diameter
Weight: 1.44kg | Wiring: 305m Max Triaxial

🔢 Suffix Decoding

330881-28-10-142-03-02
• 28: 8mm Probe + Multi-Certification
• 10: 100mm Standoff Adapter
• 142: 142mm Probe Penetration
• 03: M20 Fittings Kit
• 02: 3/4-14 NPT Standard Thread

Stock: Ships in 48hrs

Document Download Here:PROXPAC XL Proximity Transducer Assembly Datasheet
