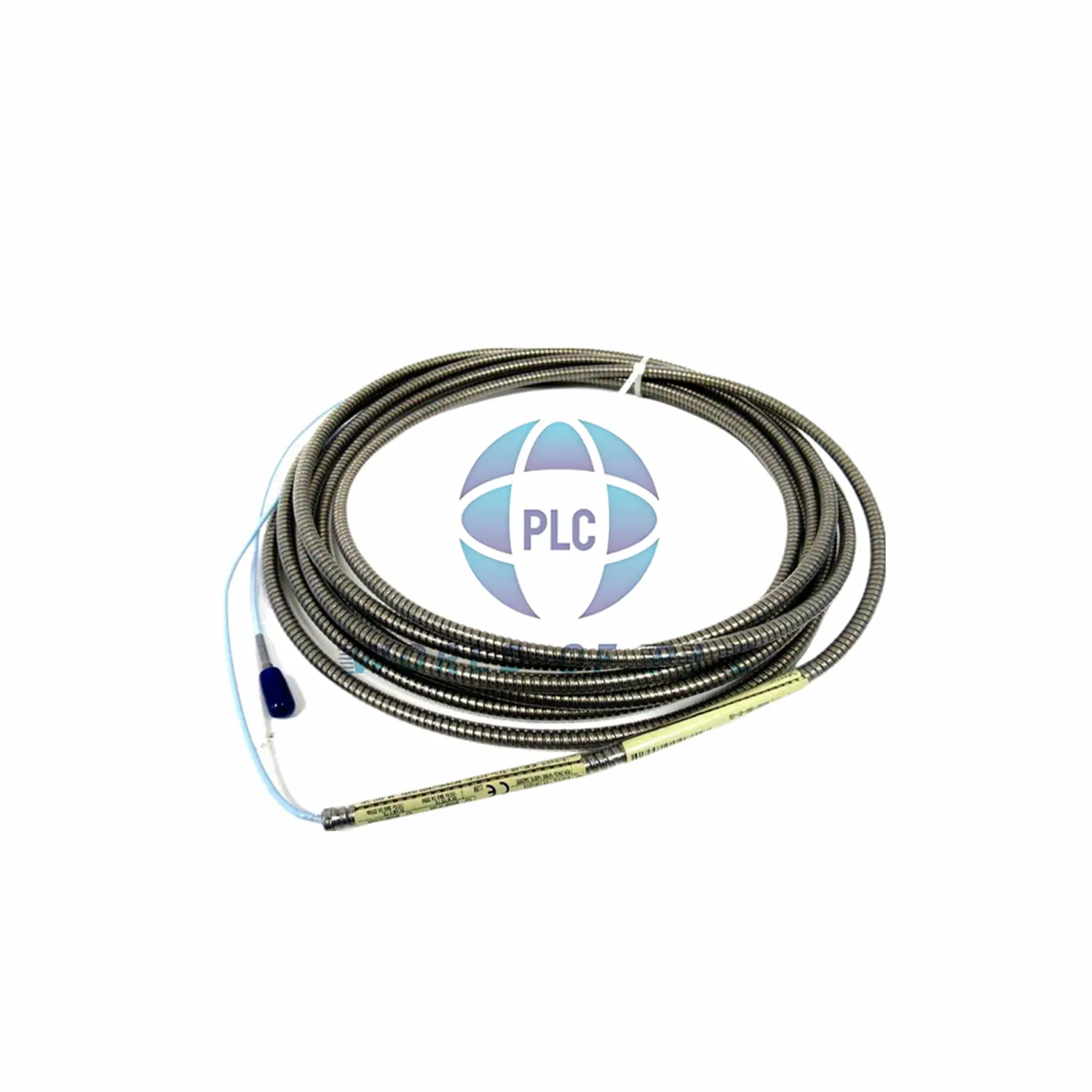

Bently Nevada 330130 Armored Extension Cable
⚙️ Configuration Details
Product No. 330130-080-01-CN
Construction: Armored (103g/m | 0.824KG total)
Certification: CN Country Approval Compliant
Origin: Made in USA · COO Available
📏 Physical Specifications
- ✅ 8.0m/26.2ft Length · ±0.5% Tolerance
- ⛓ Dual Cable Options: Standard (0.272kg) / Armored (0.824kg)
- 🔌 Connector Protector: 01 Armored Class
🔋 Electrical Properties
| Core Resistance 1.76Ω ±0.26Ω | Jacket Resistance 0.53Ω ±0.11Ω |
| Capacitance 69.9 pF/m | Max Current 12mA |
🛡️ Enhanced Protection
▪️ 3300 XL CableLoc™ Technology: 75lb Pull Resistance
▪️ FluidLock™ Option: 0.03ml/hr Max Fluid Seepage
▪️ Viton® O-Ring: 2.5MPa Pressure Containment
▪️ Silicone Tape Included · Not for Oil Exposure
🌍 Environmental Ratings
- 🌡️ Operational Range: -40°C to +125°C
- 💧 IP68 Submersion: 1.5m/30min
- 📉 <3% ASF Variation @93% Humidity (IEC 68-2-3)
🔧 Installation Parameters
▪️ 330130-080-01-CN Requires -17.5V to -26VDC
▪️ 50Ω Output Impedance · ±2% Stability
▪️ Field Wiring: 24AWG Max · 305m Distance
▪️ 12-Month Manufacturer Warranty
