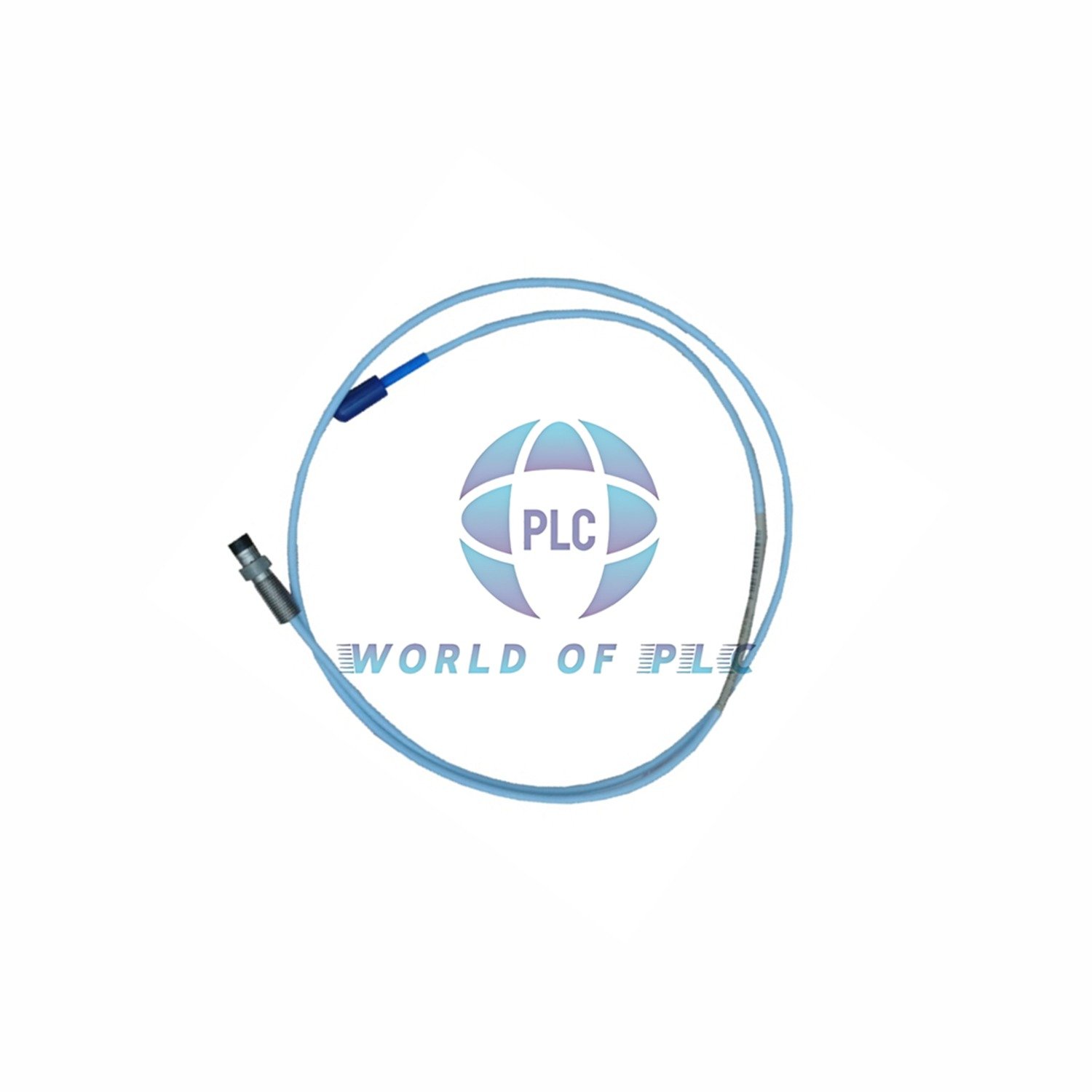

Bently Nevada | 3300 XL 8mm | 330105-02-12-50-12-CN | Reverse Mount Probe

🌐 Global Compliance Probe System

Bently Nevada 330105-02-12-50-12-CN combines 5.0m FluidLoc cable with country-specific certification (-CN). Made in USA. Includes 1-year warranty and optional COO.

📏 Precision Engineering

• ◉ Resistance: 8.73Ω ±0.50Ω @5m
• ◉ Dimensions: 20.4×22.2×3.7cm
• ◉ Weight: 323g/m (11.4oz/ft)
• ◉ Thread: 3/8-24 (14.3mm max)

🔥❄️ Thermal Performance

• Standard: -52°C to +177°C
• Enhanced Mode:
  • Probe Tip: +218°C peak
  • Cable Endurance: +260°C max
  Critical Note: Seal fails below -34°C

⚠️ FluidLoc Advisory

• The -12 suffix indicates specialized cable for:
  ▸ High-pressure liquid environments
  ▸ Non-standard installations
• Most applications use standard sleeves.

📑 Certification Matrix

• • -CN Approval: Local regulatory compliance
• • Hazard Zones:
  ▶ Zone 0: AEx ia IIC T1-T5
  ▶ Zone 2: AEx ec/nA IIC
• • Passes IEC 68-2-3 humidity tests

🔣 Suffix Decoder for 330105-02-12-50-12-CN

• ❶ -02-12: 8mm probe + connector
• ❷ -50: 5.0 meter length
• ❸ -12: FluidLoc technology
• ❹ -CN: Regional certification

Document Download Here: 3300 XL 8 mm Proximity Transducer System Datasheet
