Bently Nevada 11 mm Proximity Probe | 330702-00-10-10-01-00

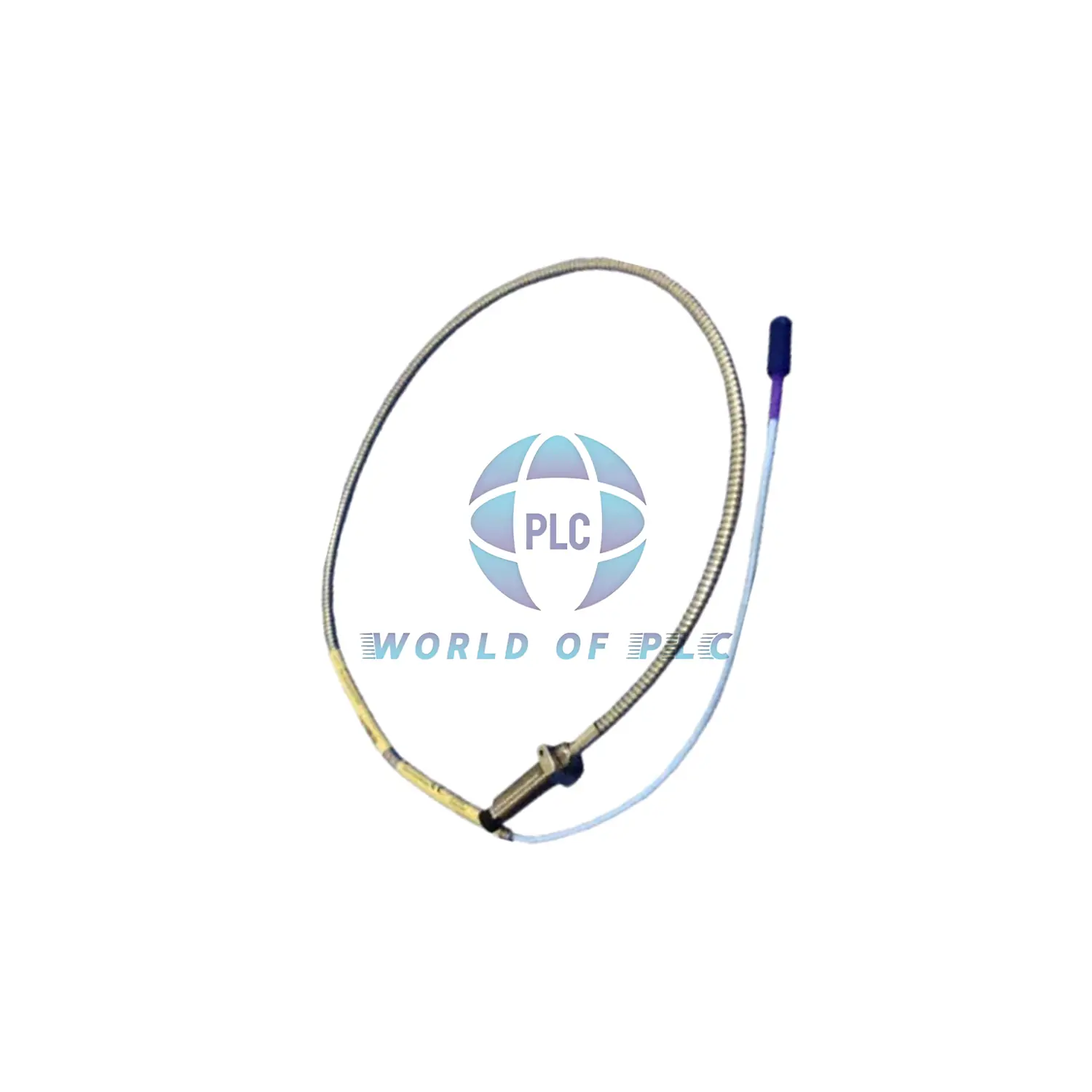

Bently Nevada 330702-00-10-10-01-00 – Compact Proximity Probe

1-meter industrial sensor with protected ClickLoc connector. Perfect for tight spaces. Made in USA with durable stainless steel.

Key Features

•  1.0 inch compact case design
•  1 meter armored cable (3.3 feet)
•  ClickLoc connector with protector
•  Wide temperature range (-52°C to +177°C)
•  No special approvals required

Model Number Explained

• 330702: Base 11mm probe
• 00: No unthreaded section
• 10: 1.0 inch case
• 10: 1 meter cable
• 01: Protected ClickLoc
• 00: Standard version

Technical Specifications

•  Electrical resistance: 5.9Ω ±0.5
•  75Ω triaxial FEP cable
•  Recommended torque: 15.2 N•m
•  Min bend radius: 25.4mm (1.0in)
•  Weight: 0.17kg (0.37lbs)
•  Thread: 1/2-20 UNF

Expert Questions

• Q: Is the connector waterproof?
  A: No, but the protector prevents damage
• Q: Can I use this in high vibration areas?
  A: Yes, armored cable resists vibration
• Q: What’s the minimum installation space?
  A: Needs only 1.0 inch clearance
• Q: Is the cable replaceable?
  A: No, cable is permanently attached
• Q: How durable is the probe tip?
  A: PPS material resists wear
