Allen-Bradley PowerFlex 525 AC Drive | 25B-D6P0N114

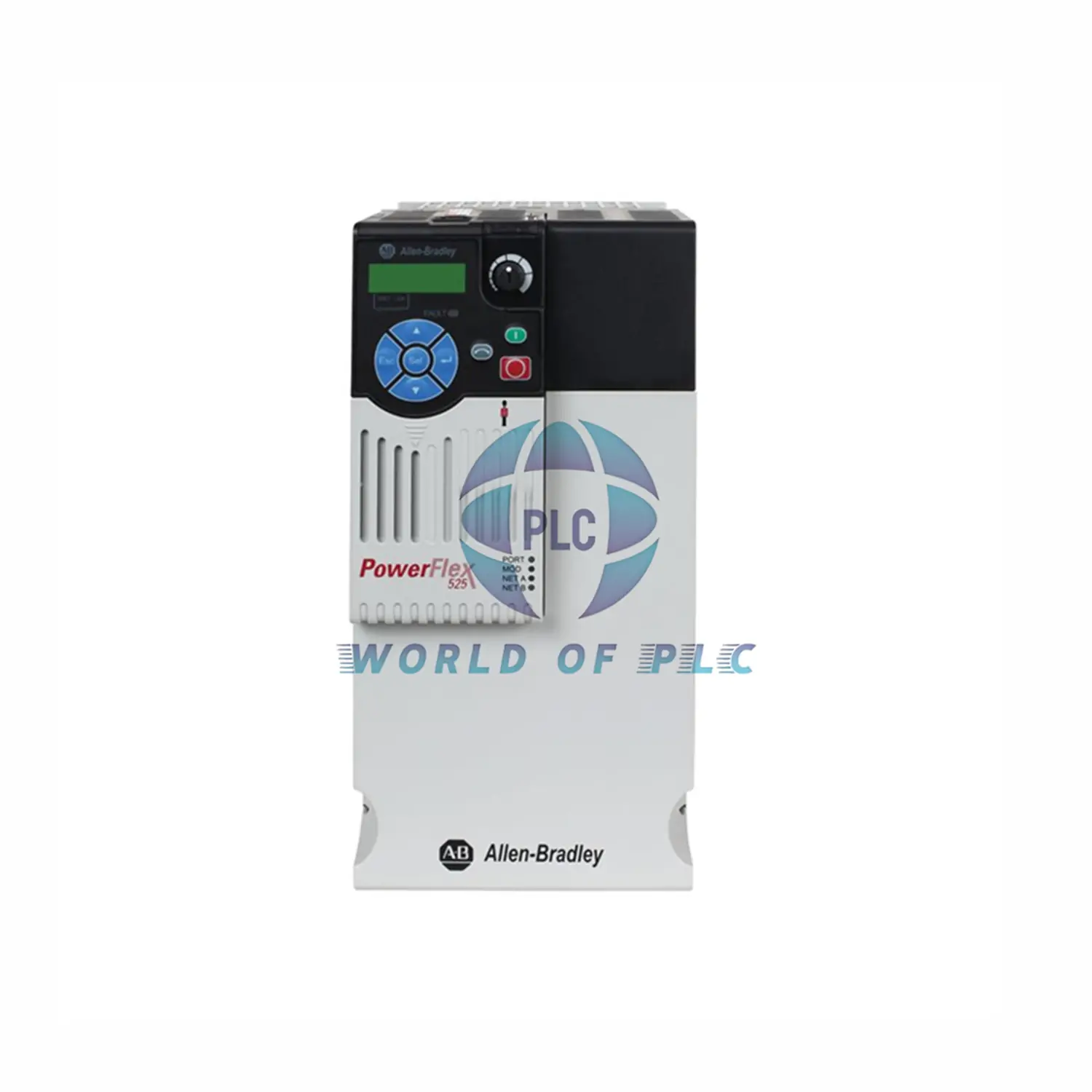

Allen-Bradley PowerFlex 525 Drive – 25B-D6P0N114 (3HP, 480V)

Key Features

• 3 HP (2.2 kW) motor control for both normal & heavy-duty use.
• Works with 480V, 3-phase power (323-528V range).
• 6.0 Amp output current.
• Easy DIN rail or panel mounting.
• Built-in EMC filter for clean power.

Technical Specs

• Model: 25B-D6P0N114 (Frame A)
• Output: 0-460V, 0-500 Hz frequency
• Control: V/Hz, Sensorless Vector, PM Motor
• I/O: 7 digital inputs, 2 analog inputs, 1 analog output
• Safety: Safe Torque-Off (STO)
• Size: 6.77″ x 2.83″ x 5.98″
• Weight: 3.3 lbs (1.5 kg)
• Temp Range: 0°C to 50°C (32°F to 122°F)

Warranty

This 25B-D6P0N114 drive comes with a 12-month warranty from purchase date.

Shipping

Fast shipping with FedEx, UPS, or DHL.

FAQ

1. Can this drive run a 3-phase fan motor?
   Yes, it works with most 3-phase AC motors up to 3HP.
2. Does it need extra cooling?
   No extra cooling needed if installed in temps below 50°C.
3. Can I control it with a PLC?
   Yes, use the built-in Ethernet or RS485 ports.
4. Is the display easy to read?
   Yes, it has a clear LCD with simple buttons.
5. How do I set the motor speed?
   Use the front dial or program it remotely.

Need the manual? Download the PowerFlex 525 manual here.
