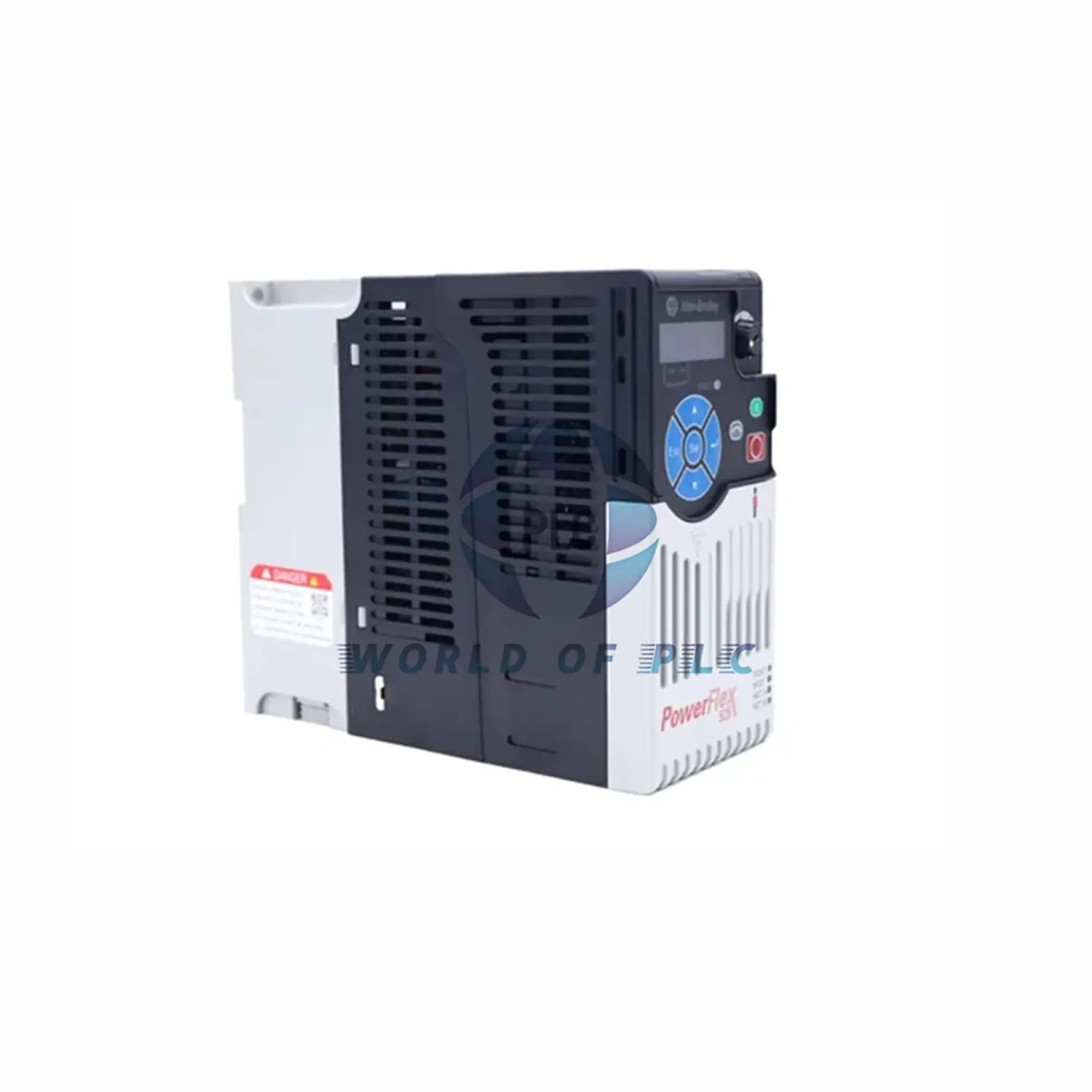

Allen-Bradley | 25B-D024N114 PowerFlex 525 AC Drive

Allen-Bradley 25B-D024N114 PowerFlex 525 Drive – 15 HP, 480V 3-Phase

Drive Highlights

• 15 HP (11 kW) industrial power
• 480V 3-Phase input (323-528V range)
• 24A output current – Heavy duty ready
• Built-in EMC filter for clean operation
• Dual-port Ethernet with DLR support

Key Specifications

• Model: 25B-D024N114 (Frame D)
• Output: 0-460V, 3-Phase
• Frequency: 0-500 Hz adjustable
• Efficiency: 97.5% typical
• Overload: 150% for 60 seconds
• Control: V/Hz, Vector, PM motor
• I/O: 7 DI, 2 AI, 1 AO, 2 relays
• Safety: Safe-Torque Off (STO)
• Temp Range: -4°F to 122°F (-20°C to 50°C)
• Weight: 15.4 lbs (7 kg)

Special Features

• LCD display with multi-language support
• USB programming port
• Studio 5000 Logix Designer compatible
• IEC 60721 3C2 conformal coating
• 100kA short circuit rating

5 Expert Questions

• Q: Can this drive run a large conveyor system?
  A: Yes, perfect for 15HP conveyor applications.
• Q: What’s the PWM switching frequency?
  A: Adjustable 2-16 kHz (rated at 4 kHz).
• Q: Does it support encoder feedback?
  A: Yes with optional encoder card.
• Q: Can I network multiple drives?
  A: Yes, via EtherNet/IP or RS485.
• Q: What’s the altitude limit?
  A: 3300ft (1000m) without derating.

Package & Support

• 12-month product warranty
• Fast worldwide shipping available
• Includes drive and quick-start guide

Compare With

• 25B-E0P9N104 (9 HP version)
• 25B-E1P7N104 (17 HP higher capacity)
