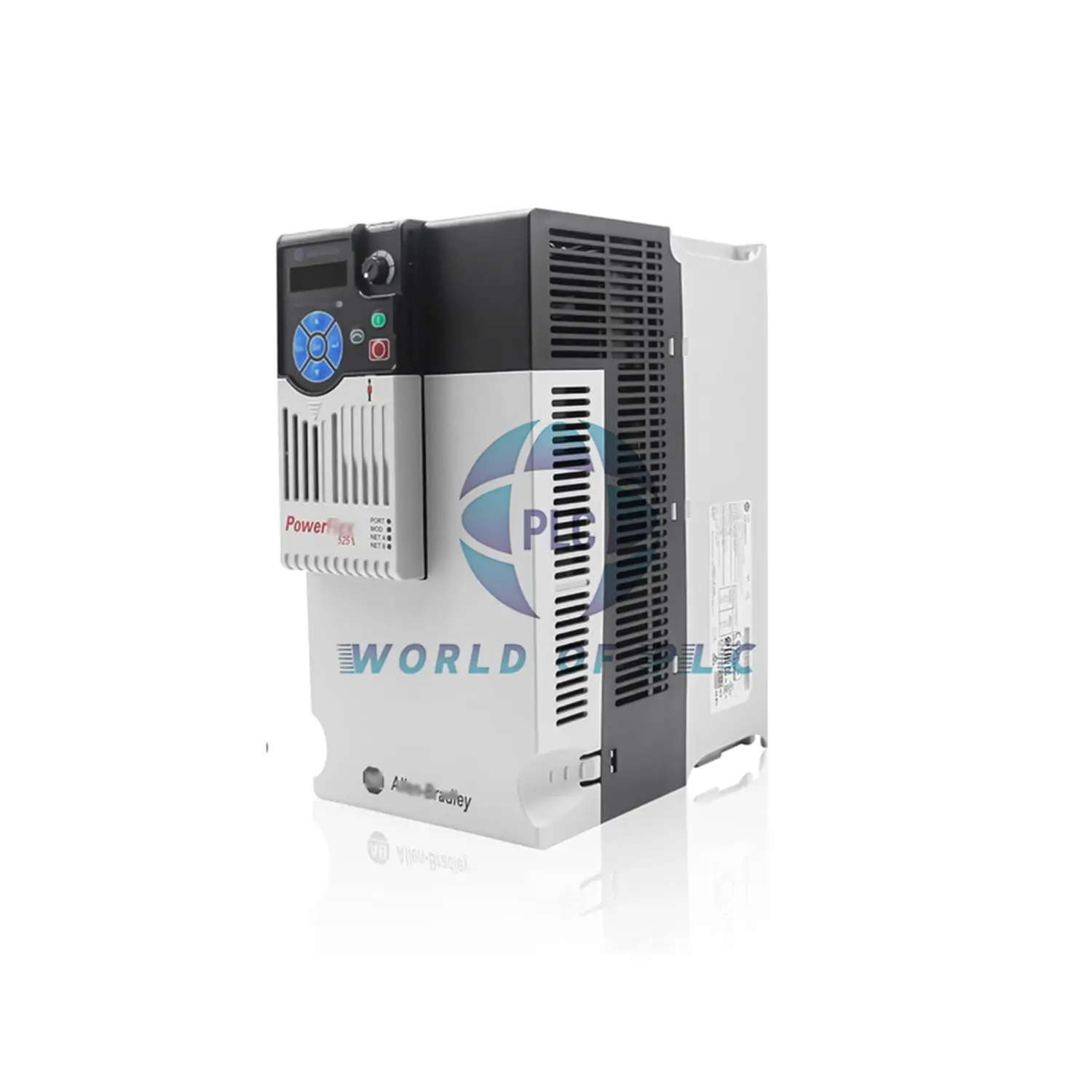

Allen-Bradley | 25B-A8P0N104 PowerFlex 525 AC Drive

Allen-Bradley 25B-A8P0N104 PowerFlex 525 Drive – 2HP Motor Control

The 25B-A8P0N104 converts single-phase power to precise 3-phase motor control. Perfect for pumps, fans, and conveyors needing 2HP (8A) power.

Technical Specifications

• Model: 25B-A8P0N104 (PowerFlex 525 Series)
• Input: 200-240V AC, 1-Phase
• Output: 0-230V AC, 3-Phase, 8A
• Power: 2HP (1.5kW)
• Frequency: 0-500Hz adjustable
• Control: V/Hz, Vector, PID modes
• Safety: Safe-Torque-Off (STO) included
• Size: 7.08″ x 6.77″ x 3.42″

Connection Options

• EtherNet/IP for network control
• USB for programming
• RS485 for serial communication
• Built-in display with potentiometer

What’s in the Box?

• 25B-A8P0N104 drive unit
• Mounting hardware
• Quick start guide

Warranty & Shipping

12-month warranty against defects. Ships via FedEx, UPS, or DHL.

Expert FAQs

• Q: Can this drive run a 3-phase motor from single-phase power?
  A: Yes! It converts 1-phase 240V input to 3-phase output.
• Q: What’s the difference between normal and heavy-duty ratings?
  A: Heavy-duty means it can handle tougher loads continuously.
• Q: Does it include braking resistors?
  A: No, but it has built-in braking control for adding resistors.
• Q: Can I control multiple motors with one drive?
  A: No, this model controls one motor at a time.
• Q: How do I program the drive?
  A: Use the built-in keypad or connect via USB/Ethernet.

Compare Similar Models

• 25B-B048N104 (5HP, 480V)
• 25B-B062N104 (7.5HP, 480V)
