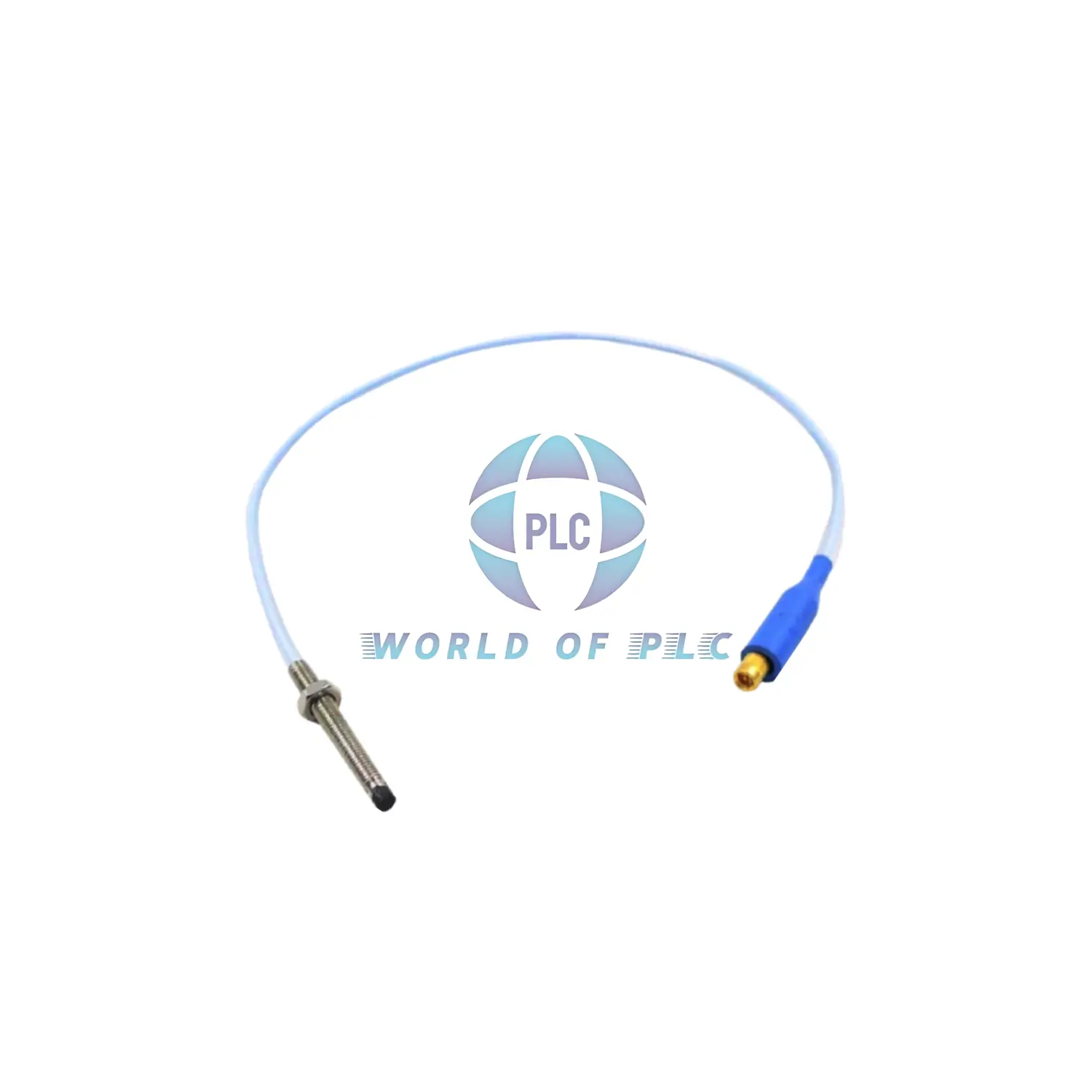

Bently Nevada 3300 NSv Proximity Probe

The 330904-08-10-10-02-00 is a Bently Nevada proximity probe. It measures vibration on machines. This model works in tough conditions. Download the full datasheet here.

Main Specifications

• Range: 1.5 mm (60 mils)
• Sensitivity: 7.87 V/mm (200 mV/mil)
• Frequency: 0 to 10 kHz
• Linearity: Better than ±0.06 mm
• Temperature: -52°C to +177°C
• Resistance: 4.2 ± 0.5 ohms

Physical Details

• Body Length: 80 mm unthreaded
• Case Length: 100 mm total
• Wire Length: 1.0 meter
• Thread: M8x1 size
• Connector: ClickLoc type
• Bend Radius: 25.4 mm min

Installation Guide

• Torque: Use 5.1 N•m (45 in•lb)
• Max Torque: Do not exceed 7.3 N•m
• Target Size: At least 13 mm diameter
• Gap: Set to 1.0 mm for best results
• Thread Engagement: Max 12 mm

Environment & Materials

• Case: Stainless steel
• Tip: PPS plastic
• Seal: Viton O-ring
• Cable: Standard coaxial
• Weather Proof: Yes

Compatibility

• Fits 3300 RAM systems
• Max wire length: 305 meters
• Works with standard cables
• Easy to replace old probes

Package Contents

• One 330904-08-10-10-02-00 probe
• Original factory box
• 12 month warranty
• Ready to install

Shipping

• We ship via FedEx, UPS, DHL
• Fast delivery worldwide
• In stock now

Questions & Answers

• What is the -08- for?
  It means 80 mm smooth body for mounting.
• Is this waterproof?
  It has seals for most industrial environments.
• How long can the wires be?
  Up to 305 meters with good cable.
• Can it measure small shafts?
  Yes, but settings may need adjustment.
• Is it tested for pressure?
  No, not tested before shipping.
