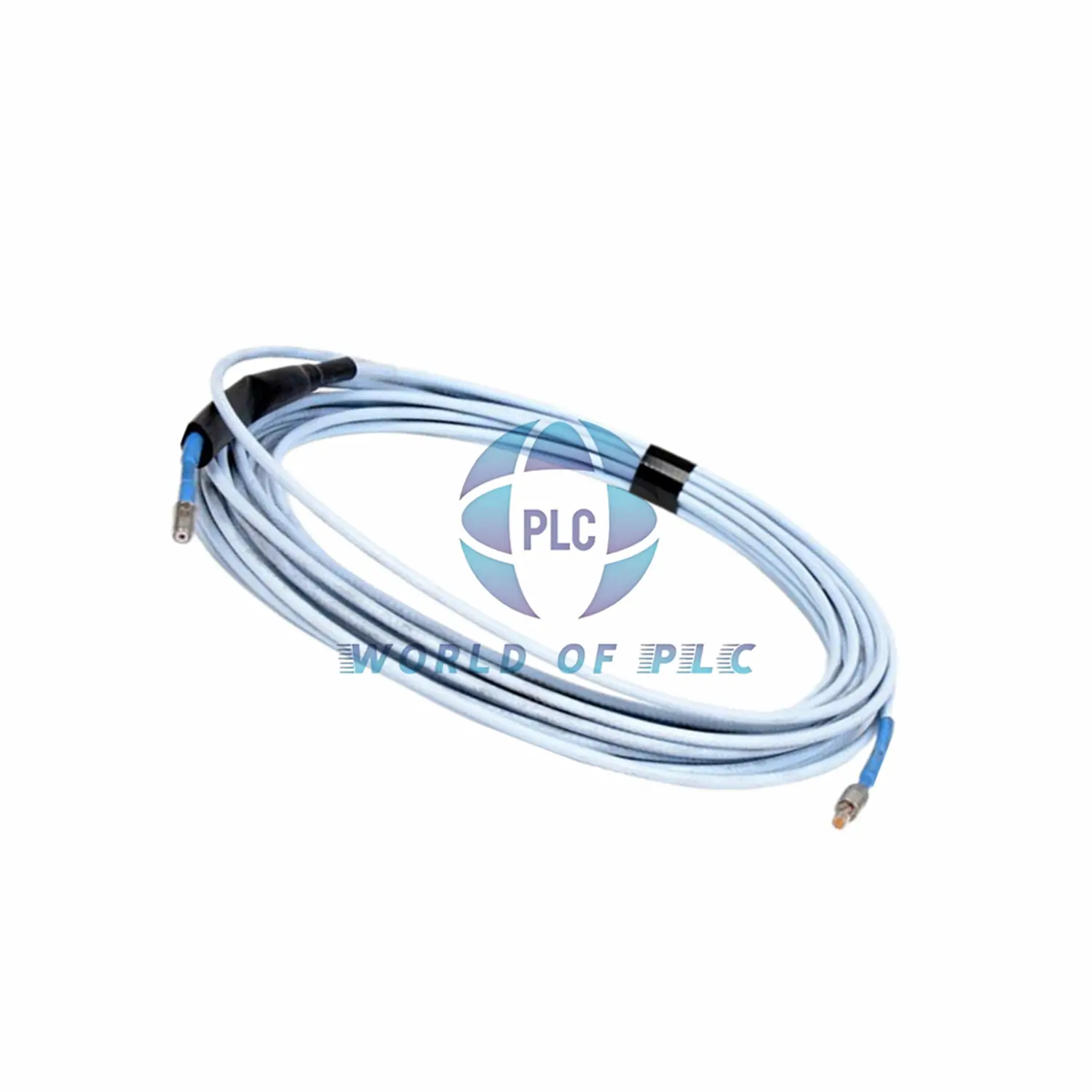

330130-040-12-CN Bently Nevada – 3300 XL 8mm Extension Cable

Bently Nevada 330130-040-12-CN: FluidLoc Anti-Leak Extension Cable

Core Specifications

Model: 330130-040-12-CN | Length: 4.0m (11.5ft) | Weight: 0.204kg
Key Feature: FluidLoc leak-proof design | Certification: CN (Country-Specific)
Warranty: 1 Year | Voltage: -17.5V to -26V DC

Technical Performance

• Resistance: 0.88Ω (Core) ±0.13 / 0.26Ω (Jacket) ±0.05
• Pull Strength: 330N (75 lbf) with CableLoc
• 50Ω Output | 69.9 pF/m Capacitance
• Humidity Stability: <3% ASF change (56 days at 93% RH)

FluidLoc Advantage

• Blocks oil/liquid leaks in machinery
• Includes connector protector (silicone tape alternative)
• Avoid tape in turbine oil environments
• Viton® O-ring seal (-40°C to +125°C operation)

Installation Guide

• Use 16-24 AWG shielded triad cable
• Max 305m field wiring distance
• Linear Range: 0.25-2.3mm (10-90 mils)
• Calibrated for AISI 4140 steel at 1.27mm gap

Compliance & Support

• COO (Certificate of Origin) available
• IEC 68-2-3 humidity compliant
• Optional pressure seal testing service
• Made in USA with global deployment support
