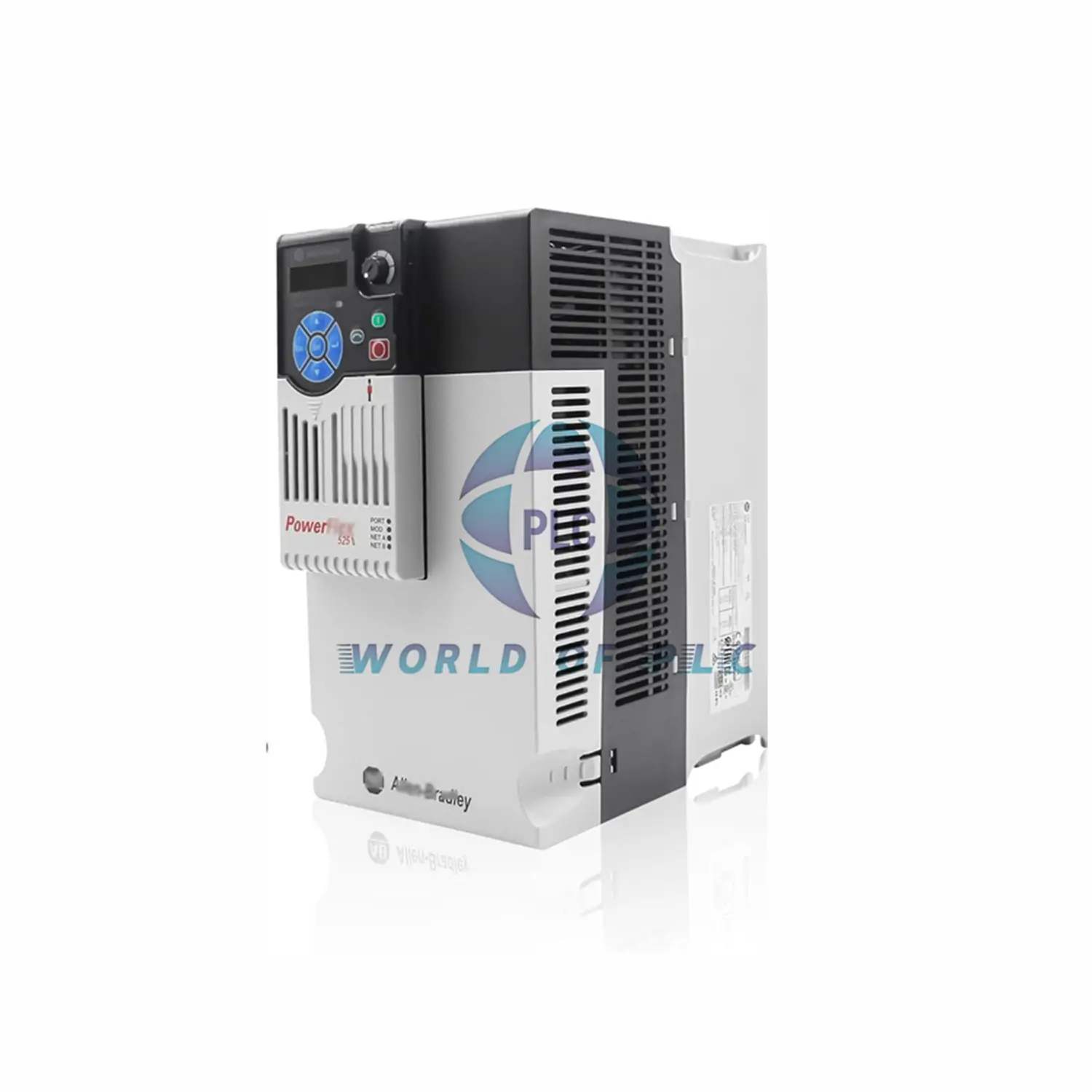

25B-D013N104 | Allen-Bradley PowerFlex 525 AC Drive

Allen-Bradley 25B-D013N104 PowerFlex 525 Drive – 7.5HP Industrial Power

The 25B-D013N104 delivers powerful 7.5HP (5.5kW) motor control with 13A output. Perfect for industrial machines needing reliable 480V 3-phase operation.

Technical Specifications

• Model: 25B-D013N104 (PowerFlex 525 Series)
• Input: 323-528V AC, 3-Phase, 15.4A
• Output: 0-460V AC, 3-Phase, 13A
• Power: 5.5kW (7.5HP)
• Frequency: 0-500Hz adjustable
• Frame Size: C (Compact design)
• Safety: Safe-Torque-Off included
• Size: 8.66″ x 7.24″ x 4.29″

Control Features

• 7 digital inputs (6 programmable)
• 2 analog inputs (0-10V/0-20mA)
• 2 relay outputs
• 1 analog output
• Ethernet/IP port

Package Contents

• 25B-D013N104 drive unit
• Mounting hardware
• Quick start guide

Warranty & Shipping

12-month warranty. Ships via FedEx, UPS, or DHL with tracking.

Expert FAQs

• Q: Can this drive work with single-phase input?
  A: No, it requires 3-phase 480V input.
• Q: What’s the difference between normal and heavy-duty operation?
  A: Heavy-duty means continuous operation at full load.
• Q: Does it include an EMC filter?
  A: No, but external filters can be added.
• Q: What motors work with this drive?
  A: Most 3-phase AC motors up to 7.5HP.
• Q: How do I program advanced features?
  A: Use the USB port with Rockwell software.

Compare Similar Models

• 25B-E012N104 (10HP, 480V)
• 25B-E022N104 (20HP, 480V)
