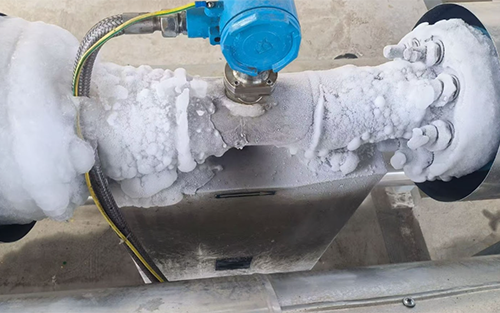

Cryogenic Precision: Measuring Nitrogen Flow With Coriolis Mass Flow Meters
Coriolis Flow Meters: Precision Solutions for Cryogenic Nitrogen Applications
The Critical Role of Nitrogen in Industrial Automation
Nitrogen serves essential functions across multiple industries. It supports electronics manufacturing and food processing. Moreover, it enables energy production and medical research. This gas presents unique measurement challenges. Its properties change dramatically with temperature. According to Grand View Research, the industrial gases market will reach $135.5 billion by 2030. Accurate flow measurement becomes increasingly important.
Understanding Nitrogen’s Physical Transformations
Nitrogen exists in three distinct states. These include gaseous, liquid, and supercritical forms. Liquid nitrogen boils at -195.8°C at atmospheric pressure. Even minor environmental changes cause rapid vaporization. Consequently, density variations reach 700-fold differences. This makes volumetric measurement highly unreliable.
Cryogenic Measurement Challenges in Control Systems
Cryogenic nitrogen creates significant obstacles for traditional flow meters. Phase instability causes two-phase flow conditions. Material contraction occurs at extreme temperatures. Frost formation risks sensor damage. Rapid density shifts distort readings. Therefore, mass-based measurement provides the only reliable solution.
Coriolis Technology Advantages for Industrial Automation
Coriolis mass flow meters overcome cryogenic limitations effectively. They measure mass directly rather than volume. This approach ensures accuracy despite phase changes. The technology integrates seamlessly with modern control systems. It supports various industrial communication protocols.
Technical Specifications and Performance Capabilities
Modern Coriolis meters offer exceptional cryogenic performance. Key technical features include:
- Temperature Range: Operates down to -200°C (-328°F)
- Measurement Accuracy: ±0.1% to ±0.5% of reading
- Construction Materials: 316L stainless steel and cryogenic alloys
- Communication Protocols: HART, PROFIBUS DP, RS485
- Process Connections: DN4 (1/8″) to DN200 (8″) sizes
Industrial Application Scenarios and Solutions
Coriolis meters serve critical functions in multiple sectors. Key applications include:
- LN₂ Filling Stations: Precise custody transfer and inventory control
- Pharmaceutical Manufacturing: Controlled nitrogen blanketing processes
- Food Processing: Cryogenic freezing and packaging operations
- Electronics Production: Semiconductor manufacturing environments
Integration with Automation Control Systems
Coriolis meters connect directly to PLC and DCS platforms. They provide real-time mass flow data. This enables precise process control algorithms. The devices support automated batch processing. Furthermore, they facilitate predictive maintenance strategies.
Expert Analysis: Future Trends in Flow Measurement
World of PLC perspective: Coriolis technology continues evolving rapidly. Manufacturers increasingly demand Industry 4.0 compatibility. Smart sensors with embedded diagnostics gain popularity. Integration with cloud platforms becomes standard. These developments enhance factory automation capabilities significantly.
Selection and Implementation Guidance
Choose Coriolis meters based on specific application requirements. Consider process temperature ranges and flow rates. Evaluate chemical compatibility and pressure ratings. Verify communication protocol support. Always consult technical specifications thoroughly.
For complete industrial automation solutions and components, visit World of PLC’s professional automation portfolio.
Frequently Asked Questions
Why do Coriolis meters outperform traditional flow meters for cryogenic applications?
Coriolis meters measure mass directly instead of volume. They remain unaffected by density changes. Their robust construction withstands extreme temperatures effectively.
How do Coriolis flow meters integrate with existing control systems?
They support standard industrial protocols including HART and PROFIBUS. This enables seamless PLC and DCS integration. Most systems provide 4-20 mA analog outputs.
What maintenance do Coriolis meters require in cryogenic service?
They typically need zero maintenance in cryogenic applications. Their welded construction and absence of moving parts ensure long-term reliability. Regular calibration verification remains recommended.
